DESIGN ROLES
+ Prepared submittal drawings for West Lafayette Area Plan Commission review

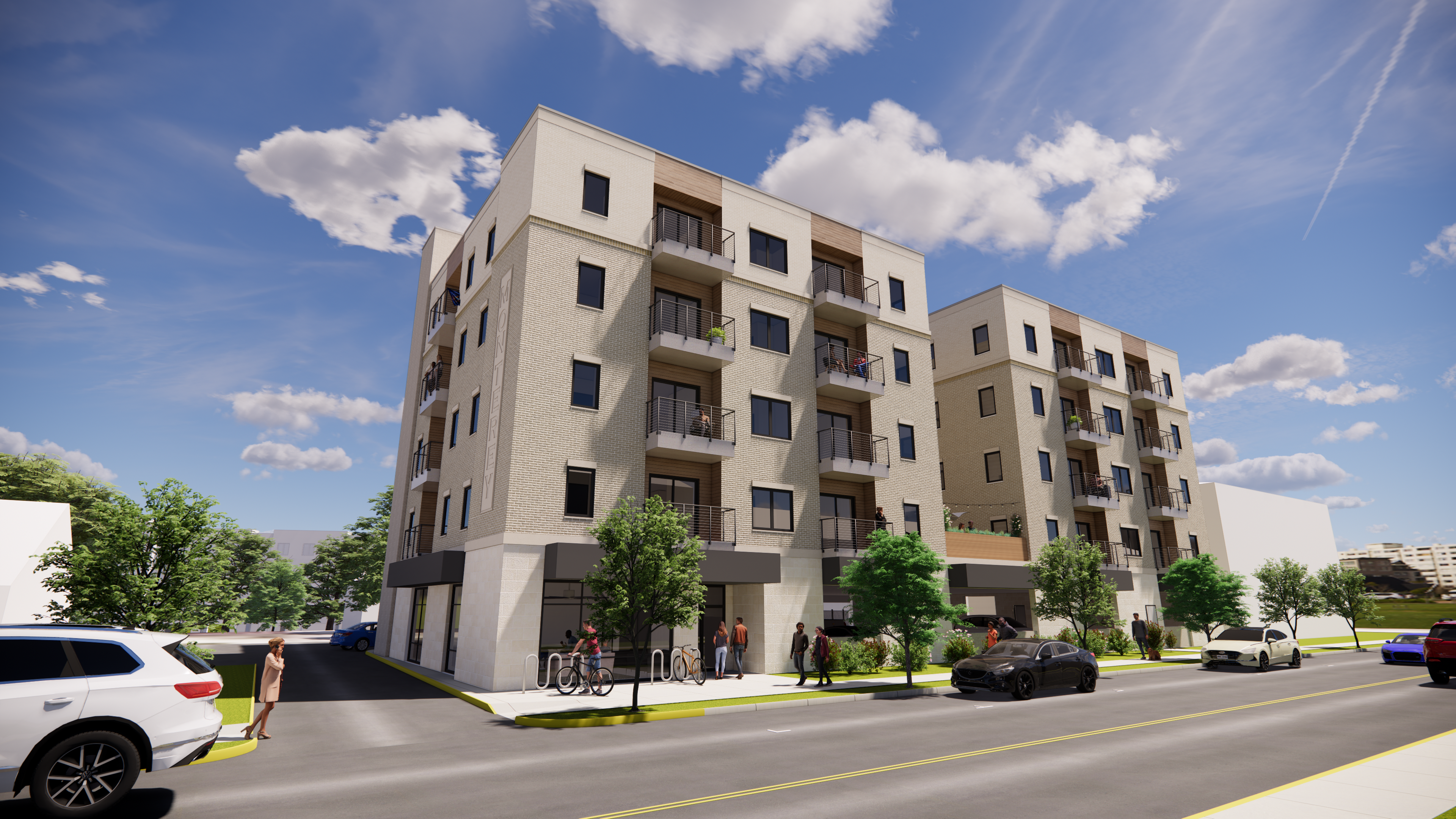

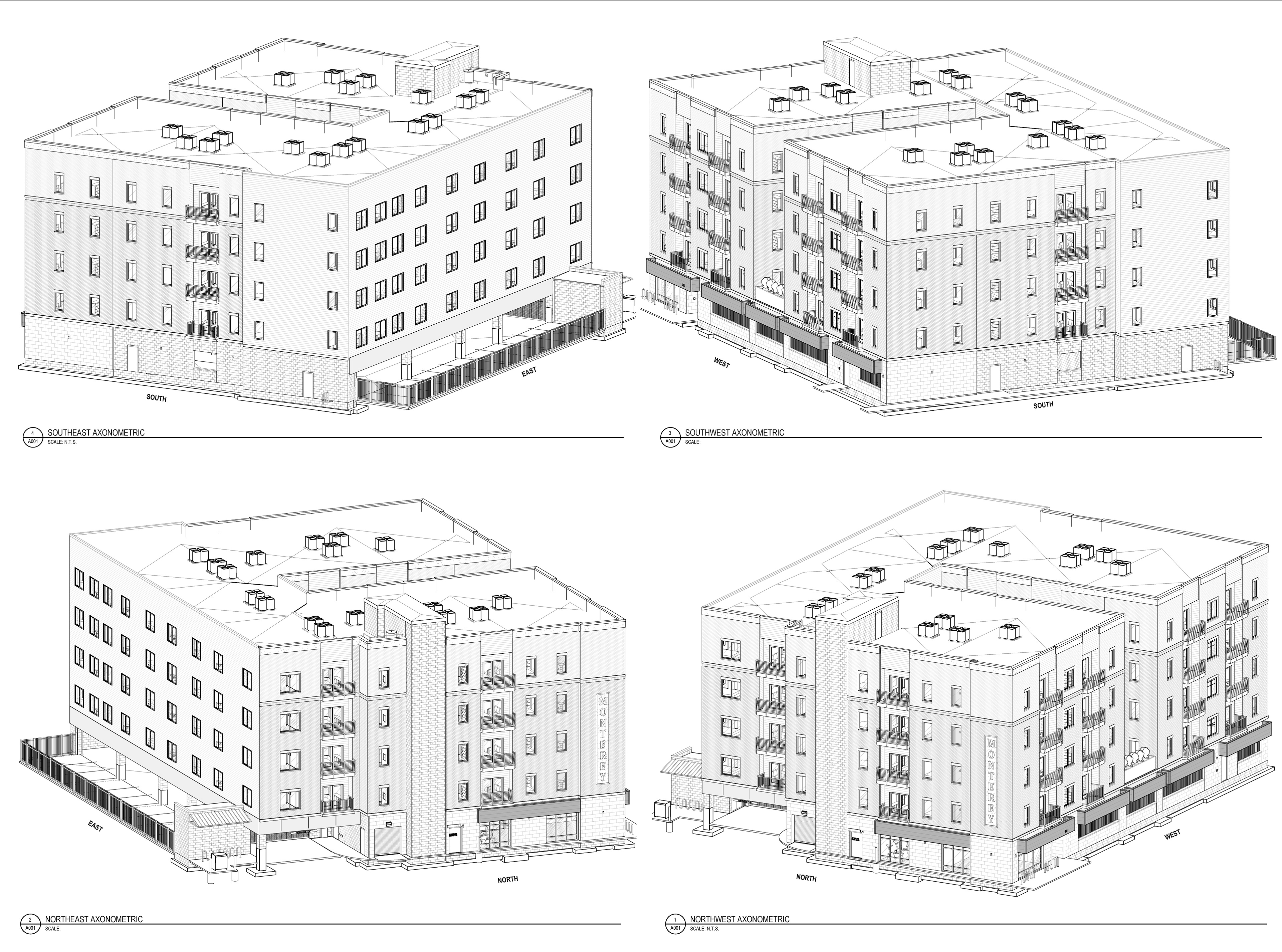

+ Rendered each iteration of the design during schematic for feedback and client approval
+ Evaluated life safety and building code requirements to accommodate building constraints

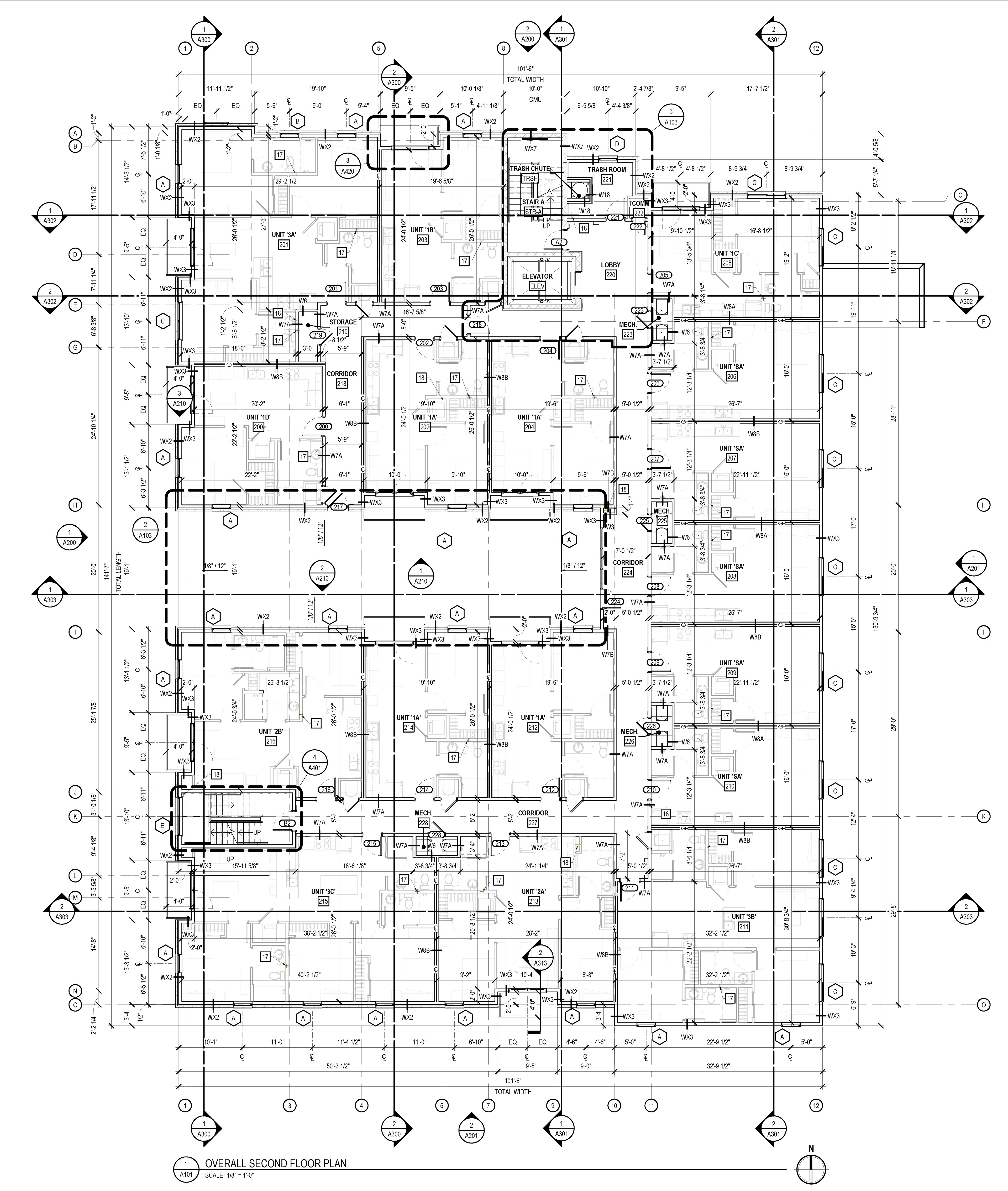

+ Engaged in development of final permit drawings
+ Prepared submittal drawings for West Lafayette Area Plan Commission review
+ Rendered each iteration of the design during schematic for feedback and client approval
+ Evaluated life safety and building code requirements to accommodate building constraints
+ Engaged in development of final permit drawings
PROJECT DATA
Timeline: Summer ‘23
Building Area: 67,262 S.F.
Firm: KJG Architecture
Software: Sketchup, Enscape, Revit
PROJECT BACKGROUND

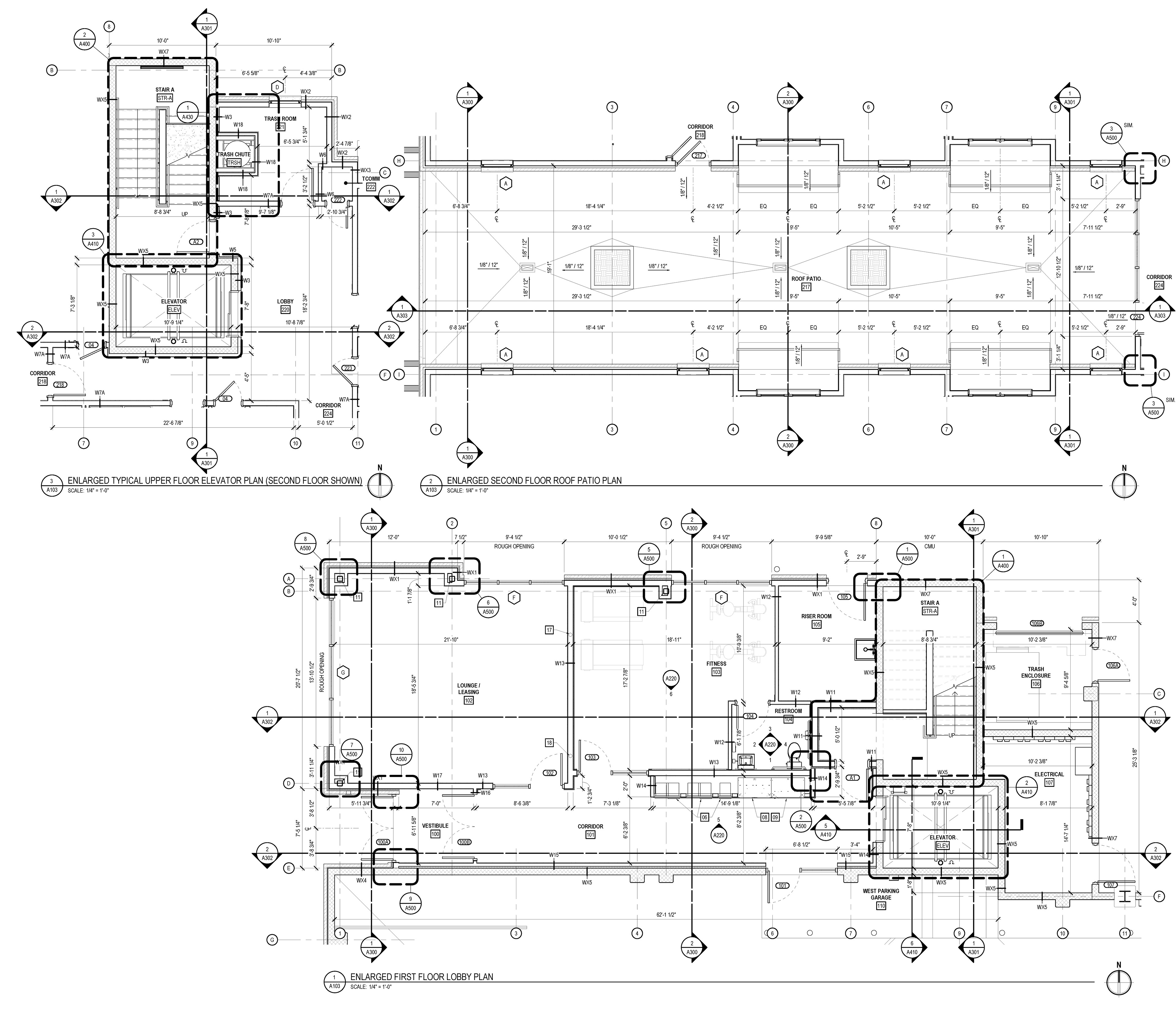

The Monterey Apartments, near the Chauncey Hill Mall in West Lafayette, will feature on-site covered parking and 68 dwelling units. A central rooftop patio on the second floor will provide relaxation spaces and interior balconies for tenants.
Timeline: Summer ‘23
Building Area: 67,262 S.F.
Firm: KJG Architecture
Software: Sketchup, Enscape, Revit
PROJECT BACKGROUND
The Monterey Apartments, near the Chauncey Hill Mall in West Lafayette, will feature on-site covered parking and 68 dwelling units. A central rooftop patio on the second floor will provide relaxation spaces and interior balconies for tenants.
